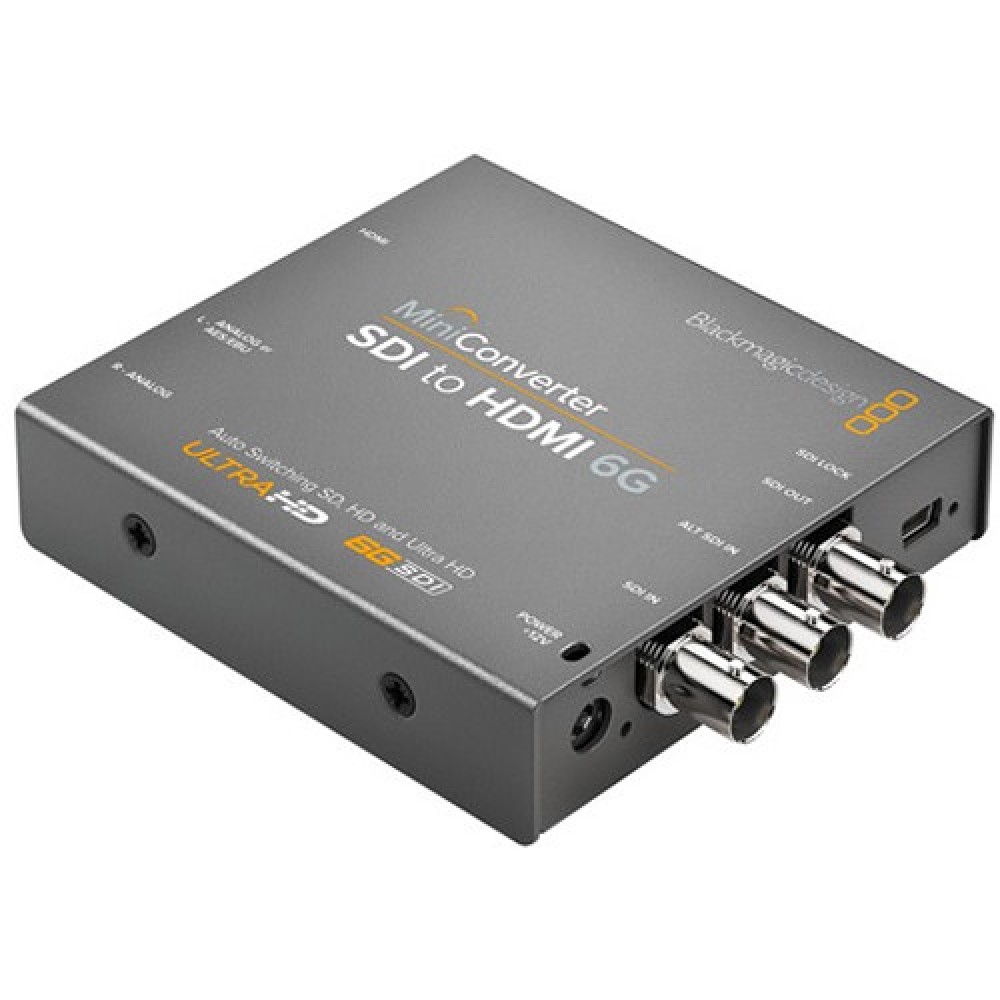

Mini Converter SDI to HDMI 6G

625i50 PAL, 525i59.94 NTSC

720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60

2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE ST‑2081

SDI video connections are switchable between standard definition, high definition, Level A or Level B 3G‑SDI and 6G‑SDI.

4:2:2 and 4:4:4

Television standard sample rate of 48 kHz and 24 bit.

4:2:2 and 4:4:4

YUV and RGB

Automatically detects SD, HD or 6G‑SDI.

625i50 PAL, 525i59.94 NTSC, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

YUV and RGB

4:2:2 and 4:4:4

Mac OS and Windows software upgrade via USB.

Via included updater application.

12 ‑ 18V DC

5.2 Watts

0° to 40° C (32° to 104° F)

-20° to 45° C (-4° to 113° F)

0% to 90% non-condensing
